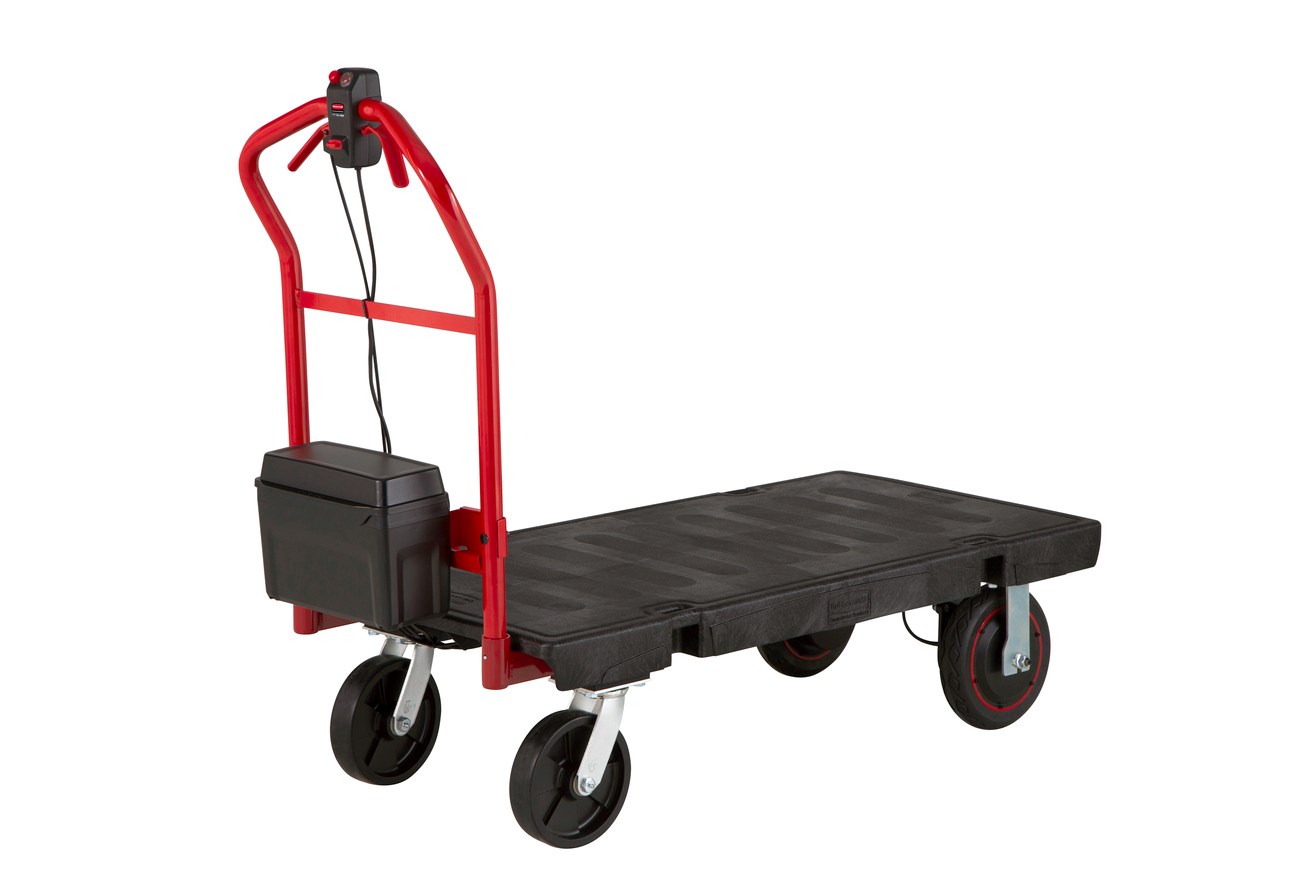

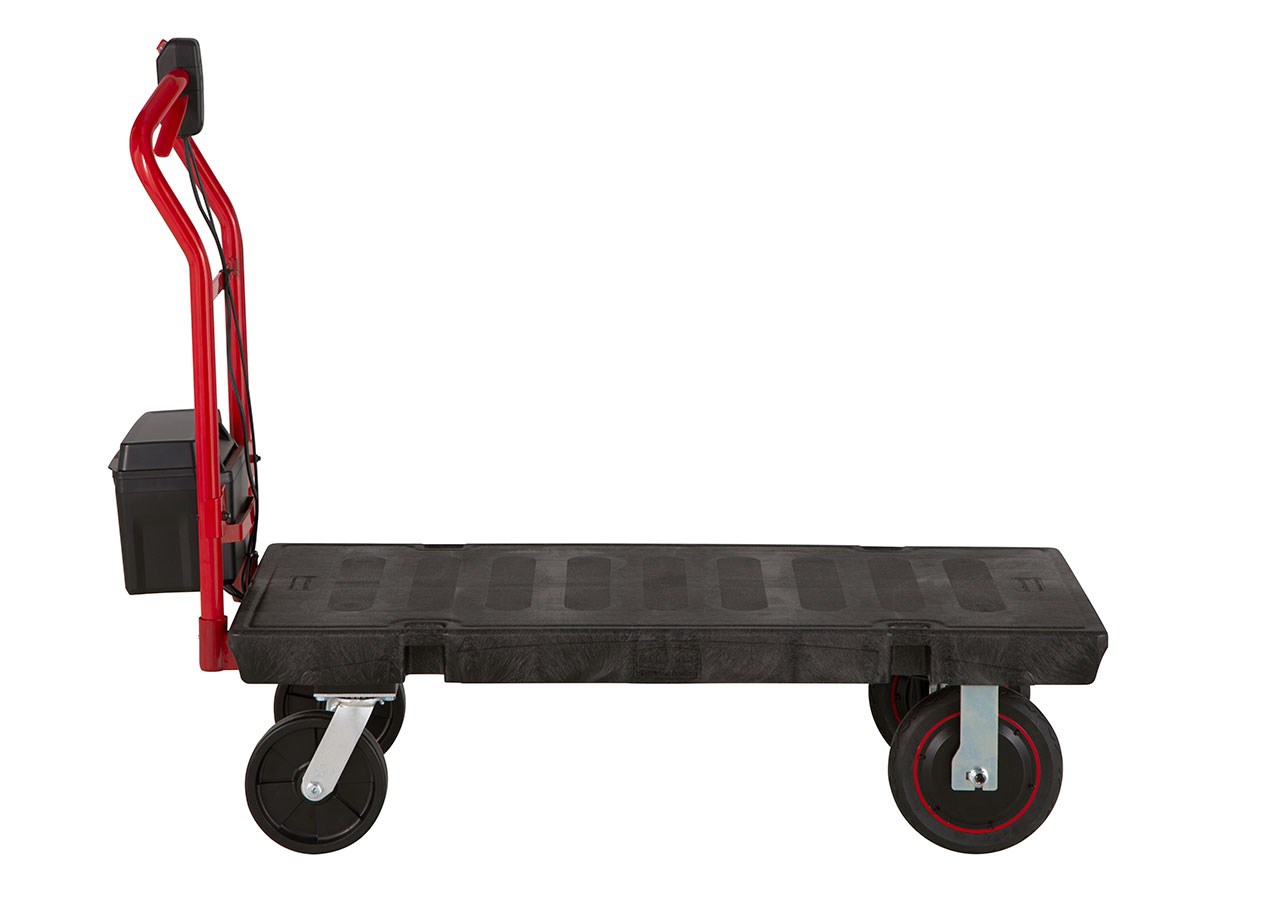

Motorized Kit for 24 x 48 Platform Truck

SKU: 2173663

The Platform Truck Motorized Kit is ideal for users who want the benefits of using motorized power for moving heavy loads and reducing user strain.

  • Two motorized 10" drive wheels assist in moving heavy loads up to 1,000 lbs. and reduce strain experienced by users when pushing heavy trucks and moving long distances
  • Handbrake is available for emergency purposes
  • Centralized control system features variable speed from 0-3 mph with forward and reverse settings
  • Removable key prevents unauthorized use of power
  • Substituting manual power for battery power helps regain time lost over the course of a shift due to cumulative fatigue

Size:

details

The Platform Truck Motorized Kit is ideal for users who want to add the benefit of motorized power for moving heavy loads to their existing RCP Platform Trucks. Battery-powered drive wheels reduce strain experienced by users when pushing heavy trucks and moving long distances.

Features and Benefits:

  • Two motorized 10" drive wheels assist in moving heavy loads up to 1,000 lbs. and reduce strain experienced by users when pushing heavy trucks and moving long distances
  • Handbrake is available for emergency purposes

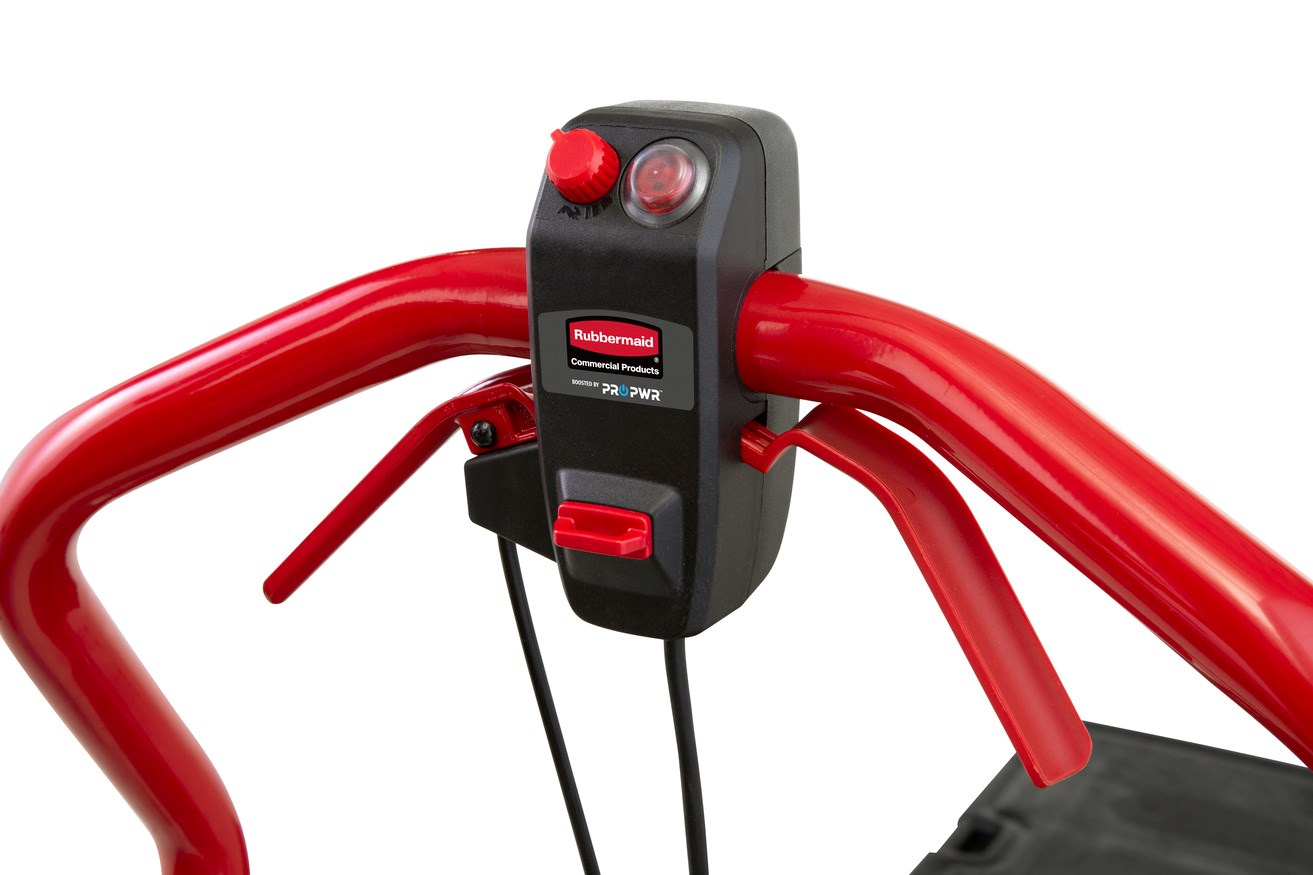

  • Centralized control system features variable speed from 0-3 mph with forward and reverse settings
  • Removable key prevents unauthorized use of power
  • Substituting manual power for battery power helps regain time lost over the course of a shift due to cumulative fatigue

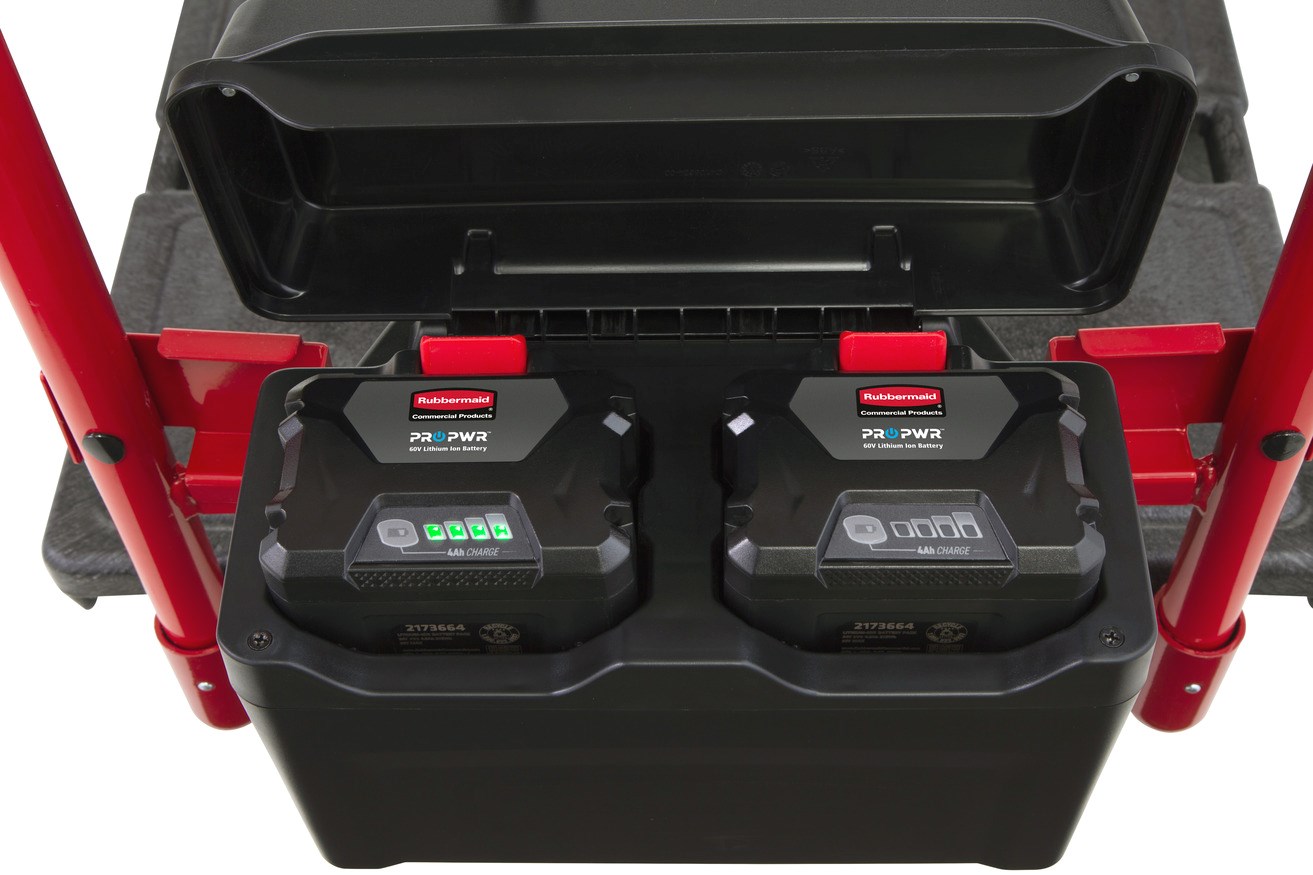

  • Dual onboard battery compartments provide back-up power without having to plug in the entire truck, minimizing costly workflow disruptions due to battery switch outs
  • Rechargeable battery (2173664) can be easily changed out
  • Compatible with existing platform trucks: FG443600BLA, FG443610BLA, FG444100BLA (sold separately)
  • Kit includes: hand -activated control, 2 motorized drive wheels, 1 battery, 1 charger, 2 keys. Truck not included
  • Rated IPX4

specifications

U.S. Metric
Product Length 36.81 in 93.50 cm
Product Width 23.23 in 59.00 cm
Product Height 11.81 in 30.00 cm
Product Weight 61.73 lb 28.00 kg
Upc 00086876244281
Case Pack Quantity 1
Color Black
Country of Origin China

Documents

Motorized Tilt And Platform Truck Sell Sheet

Motorized Platform Truck Installation Instructions (2173661, 2173663)

Power Kit Operation Guide

Motorized Truck And Cart Battery Charger Owner's Manual

Motorized Truck And Cart Battery Owner's Manual

Warranty Information

2-Year Limited Warranty


Certifications & Regulatory Information


CE

CE marking is a mandatory conformity marking for certain products sold within the European Economic Area (EEA) since 1985. The CE marking is also found on products sold outside the EEA that are manufactured in, or designed to be sold in, the EEA.
CE marking indicates that the manufacturer or importer claims compliance with the relevant EU legislation applicable to a product, irrespective of where manufactured.
